Top 15 Navigation Instruments in Aircraft Explained

Every airplane in the sky depends on something more than strong engines or sturdy wings—it depends on navigation instruments in aircraft. These tools help the pilot know where they are, how high they’re flying, and which way they’re going. Without them, flying safely would be almost impossible.

Today, satellite-guided LPV approaches have become so common that they now outnumber traditional ILS approaches in the U.S. by nearly three to one, showing how much navigation has advanced.

Just picture traveling thousands of miles through clouds or darkness. You can’t see roads or signs. That’s why aircraft need precise tools to show their flight path and directional heading. These tools don’t just tell pilots where to go—they help them understand how the plane is performing in real time.

In the next few sections, we’ll see how pilots used to find their way, what tools they used before modern computers, and how those early systems evolved into today’s smart navigation technology that fills every instrument panel.

How Pilots Find Their Way in the Sky

Flying an aircraft is different from driving a car. There are no street signs, road maps, or lanes up there—only sky. So, how do pilots know where they are and how to get where they’re going? The answer lies in a special group of tools called aircraft instruments.

These instruments give the pilot constant updates about the airplane’s position, altitude, speed, and direction. Together, they form what’s known as the six basic or basic flight instruments. Here’s  a closer look:

• Airspeed Indicator: Shows how fast the plane moves through the air. It measures air pressure using the pitot-static system, which includes both pitot-static and static system lines.

• Altimeter: Tells how high the aircraft is above sea level. It measures barometric pressure and converts it to feet per minute or altitude readings.

• Attitude Indicator: Also called an artificial horizon, this shows if the airplane’s nose is up or down, and if the wings are level. It uses gyroscopic instruments to sense the aircraft’s pitch and bank.

• Heading Indicator: Points to the direction the aircraft is flying, often paired with a magnetic compass to correct for drift.

• Turn Coordinator: Shows the rate of turn and how well the plane stays coordinated during a turn.

• Vertical Speed Indicator (VSI): Displays the rate of climb or descent in feet per minute, helping the pilot maintain level flight.

These navigation instruments work together under instrument flight rules (IFR), where a pilot must fly using only their instruments—no visual cues. For example, during instrument flight, the pilot depends on the heading indicator, VSI, and altimeter to stay stable.

Each dial or indication tells part of the story. The primary flight display in newer aircraft combines many readings on one screen, showing navigation information like aircraft heading and rate of climb.

Even today, pilots still cross-check their magnetic readings with the directional gyro to stay accurate. A good pilot never trusts just one indicator—they compare them all for the clearest picture.

The Early Days of Air Navigation

Before GPS and digital screens, early aviators relied on simple tools and their senses. The first major device was the magnetic compass, which pointed north and guided direction. However, flying wasn’t easy. Clouds, storms, and night flights made it nearly impossible to see landmarks.

That’s when pilots began using navigational aids to improve safety. In the 1920s, radio signals started helping with long-distance travel. The VOR (VHF Omnidirectional Range) system became a major breakthrough, sending radio signals that showed direction from a ground station.

Other early systems included:

• ADF (Automatic Direction Finder): Helped pilots find the direction of radio stations.

• ILS (Instrument Landing System): Guided aircraft to the runway through electronic flight signals. This instrument landing system remains one of the most reliable aids for landing in poor weather.

• Turn and Slip indicators that used a small gyro to show movement and balance.

Pilots used to study charts that showed navigational beacons and airways. Flying under IFR meant they followed invisible highways made of radio signals instead of roads.

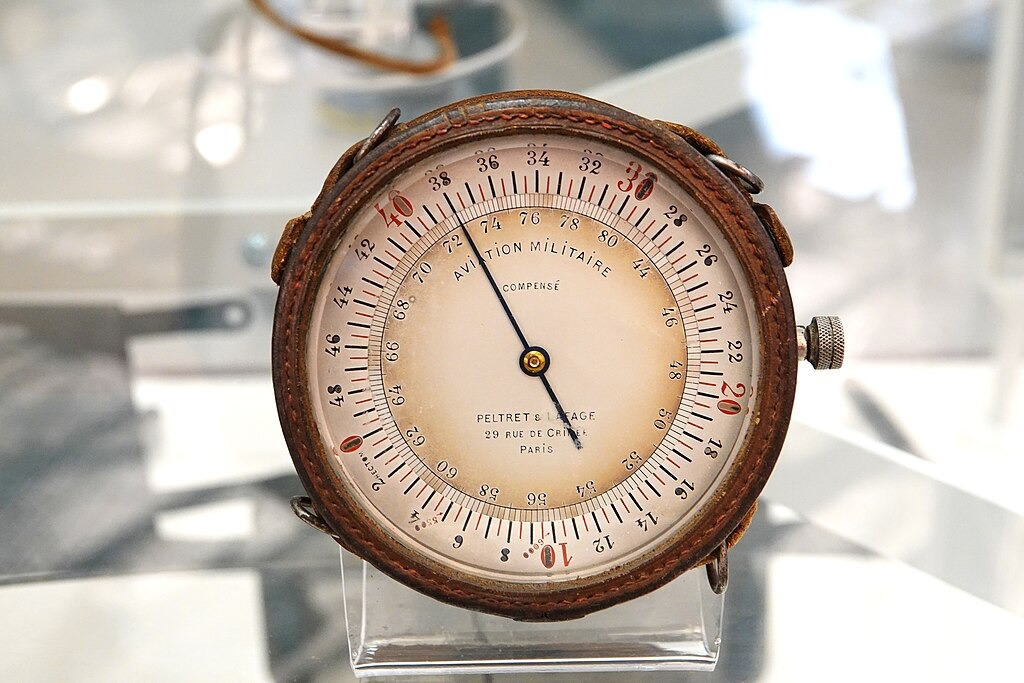

Each early flight instrument was mechanical, relying on air pressure or static pressure instead of electronics. They were built inside a sturdy instrument case to handle vibration and temperature changes.

In older planes, a gyro powered by air or vacuum kept the attitude indicator and directional gyro spinning. The rate of climb and rate of turn were tracked using these small moving parts. It was a careful balance of skill, patience, and trust in the instruments.

Even though technology was basic, these early tools made it possible for long-distance instrument flight—something that changed aviation forever.

From Simple Tools to Smart Systems

Today’s aircraft use advanced systems that combine traditional tools with powerful computers. These aircraft instruments are no longer separate dials. They work together in a digital display called a primary flight display. This modern screen shows altitude, airspeed, aircraft heading, and even rate of climb all in one place.

Modern gyroscopic and electronic flight systems are precise and easy to read. The old spinning gyro has been replaced with sensors that send digital data instantly. For example, the attitude indicator and heading indicator now use gyroscopic instruments and electronic sensors to detect movement.

Many planes use the Global Positioning System (GPS) and inertial navigation systems (INS). These systems track position by combining satellite data and motion sensors. Even if a satellite signal drops, the INS can calculate the plane’s path based on how it moves.

Modern systems also include:

• Horizontal Situation Indicator (HSI): Combines heading, VOR, and ILS data into one view.

• Flight Director: Gives visual cues on the primary flight display to help pilots follow the correct flight path.

• Engine instruments that work with the flight display to monitor performance.

Newer systems reduce errors by constantly comparing static and pitot-static readings. These computers analyze air pressure, barometric pressure, and even wind data to give accurate indication of altitude and speed.

Modern cockpits also make instrument flight easier. Instead of checking several dials, the pilot sees everything in one glance. The data from the static system, VSI, and altimeter are blended with navigation information from the GPS and radio signals like the ILS and VOR.

Flying today is safer and smoother thanks to these smart systems. While the basics remain—the attitude indicator, altimeter, and airspeed indicator still guide every flight—the way they connect has evolved. Pilots can now fly long routes, even across oceans, with confidence in their electronic flight systems.

15 Navigation Instruments in Aircraft That Help Pilots

Flying might look peaceful from the ground, but inside the cockpit, every second counts. Pilots depend on special tools that work together to keep the airplane on course, at the right height, and moving at the correct speed.

 These tools, called navigation instruments, give constant feedback to help pilots make safe decisions.

Here is a more detailed look at the 15 navigation instruments in aircraft that make flying safe and accurate.

1. Magnetic Compass

The magnetic compass is one of the oldest and most reliable navigation tools. It always points toward the Earth’s magnetic North Pole, helping pilots know which way they’re heading.

• It doesn’t need electricity or batteries, which makes it dependable even if other systems fail.

• The compass sits on the instrument panel, filled with fluid to keep it steady during bumps or turbulence.

• Pilots use it to check and correct readings from other directional tools like the heading indicator.
  Because it reacts slowly to turns and acceleration, pilots learn to read it carefully. Even though modern technology has improved, every pilot still learns how to fly using a simple compass.

2. Heading Indicator

The heading indicator helps a pilot stay on course by showing the airplane’s direction in degrees. It uses a small spinning wheel, or gyroscope, that stays steady even when the airplane moves around.

• The reading appears on a circular dial, showing north, south, east, and west positions.

• Because of small mechanical drifts, pilots reset it using the magnetic compass about every 15 minutes.

• It’s especially helpful when the airplane is turning or when there’s no visible horizon.
  This instrument gives a smoother, more stable reading than a compass alone. It’s one of the most important parts of flying under instrument flight rules (IFR).

3. Attitude Indicator

The attitude indicator, also called the artificial horizon, shows how the airplane’s nose and wings are positioned in the sky. It displays pitch and bank, which tell the pilot if the plane is climbing, diving, or turning.

• The background is colored: blue for sky and brown for ground, so it’s easy to read quickly.

• It uses gyroscopic sensors to keep the display steady no matter how the plane moves.

• It’s most useful when flying through clouds, fog, or darkness, where the real horizon can’t be seen.
  This instrument gives instant feedback about the airplane’s balance, helping the pilot keep safe and smooth control.

4. Altimeter

The altimeter measures how high the airplane is above sea level. It works by comparing outside air pressure to a reference barometric pressure set by the pilot before takeoff.

• It shows altitude in feet per minute or total altitude on a round dial or digital display.

• Because air pressure changes with weather, pilots must adjust the setting during flight.

• A small error can make a big difference in altitude readings, so pilots double-check often.
  When flying under instrument flight, the altimeter helps prevent collisions and ensures safe spacing between aircraft. It’s a key part of the pitot-static system.

5. Airspeed Indicator

The airspeed indicator shows how fast the airplane moves through the air. It’s powered by the pitot-static system, which measures the pressure difference between moving air and still air.

• The display uses colored arcs to show safe, normal, and dangerous speeds.

• Pilots learn about the types of airspeed: indicated, true, and ground speed. Each helps in a different way.

• Indicated airspeed shows what’s on the gauge, while true airspeed adjusts for altitude and temperature.
  This instrument helps pilots make smooth climbs and safe landings. If the pitot tube becomes blocked, the airspeed readings can be wrong—so checking it before flight is vital.

6. Vertical Speed Indicator (VSI)

The VSI shows how quickly the airplane is climbing or descending. It measures changes in static pressure and turns that into a reading in feet per minute.

• It helps the pilot maintain a steady rate of climb or descent.

• The needle points up when climbing and down when descending; zero means level flight.

• It gives early warning if the airplane starts rising or dropping unexpectedly.
  This tool allows smoother altitude changes and helps prevent sharp or dangerous altitude shifts, especially in poor visibility.

7. Turn Coordinator

The turn coordinator shows how the airplane is turning and if it’s balanced. Inside, a small gyro tilts and moves as the airplane turns.

• It also displays a tiny ball that slides in a tube to show if the turn is “coordinated.”

• If the ball is centered, the turn is balanced; if not, the pilot must adjust rudder pressure.

• Pilots use it to make a standard rate turn, meaning the airplane turns 3° per second.
  This simple but vital instrument helps pilots avoid slipping or skidding turns, especially during low visibility.

8. Directional Gyro

The directional gyro is similar to the heading indicator but designed for more accuracy in some aircraft.

• It stays stable using a gyroscopic wheel that resists movement, keeping direction readings steady.

• It doesn’t rely on magnetic north, so it avoids compass errors during turns or acceleration.

• Pilots often use it together with the magnetic compass to ensure accuracy.
  Even though modern displays can replace it, many small airplanes still use the directional gyro for dependable, real-time heading information.

9. Horizontal Situation Indicator (HSI)

The HSI combines navigation and direction information into one easy display.

• It shows the airplane’s current heading and how it aligns with VOR or ILS navigation paths.

• It helps pilots visualize where they are in relation to a runway or flight route.

• The HSI replaces several separate dials, making flying simpler and less stressful.
  This tool is especially valuable during approaches or complex flight routes where precision matters most.

10. Flight Director

The flight director acts like a digital helper for the pilot. It gives simple visual cues that guide climbs, descents, and turns.

• It’s usually part of the primary flight display, working together with the autopilot system.

• Colored bars or symbols show the exact direction to fly for best results.

• It helps keep the airplane perfectly aligned with the flight plan or approach path.
  Even when autopilot isn’t active, the flight director provides reliable guidance, making flying smoother and safer.

11. VOR Receiver

The VOR (VHF Omnidirectional Range) receiver uses radio signals from ground stations to show direction.

• Each station sends out a special signal that allows the airplane to find its position.

• The cockpit display shows if the aircraft is flying on course or if it needs to adjust left or right.

• Many flight paths in the U.S. still use VOR stations for route guidance.
  Though GPS has become the main tool today, VOR remains a trusted backup for long flights and training.

12. ILS (Instrument Landing System)

The ILS helps pilots land safely when visibility is poor or during bad weather.

• It uses two main radio beams: one guides the airplane side-to-side, and the other shows the correct glide angle.

• These signals connect with the airplane’s instruments to show the pilot’s position relative to the runway.

• It allows landings even when the runway can’t be seen until the very last seconds.
  The instrument landing system has been saving lives for decades and is still used at major airports worldwide.

13. Inertial Navigation Systems (INS)

Inertial navigation systems track an airplane’s movement using sensors that measure acceleration and rotation.

• The system calculates position changes even without outside signals.

• It’s extremely useful on long flights, especially over oceans where no radio or GPS coverage exists.

• INS uses multiple gyroscopic and motion sensors to maintain accuracy over hours of flight.
  While it can slowly drift, pairing INS with GPS keeps navigation perfect over long distances.

14. Global Positioning System (GPS)

The Global Positioning System uses a network of satellites orbiting Earth to find exact positions.

• The airplane’s GPS receiver collects signals from several satellites to calculate location and speed.

• It gives precise tracking and allows the pilot to see the flight route in real time.

• GPS also connects with other flight computers to plan and follow efficient routes.
  It has become the main navigation system in most newer aircraft, offering unmatched accuracy and reliability.

15. Engine Instruments

Engine instruments may not seem like navigation tools, but they are essential for safe and efficient flight.

• They show vital details like oil pressure, fuel flow, and engine temperature.

• Pilots use this information to ensure engines run smoothly, especially during climbs and descents.

• If an engine shows unusual readings, the pilot can react quickly to avoid bigger issues.
  By keeping the engines healthy, these instruments support safe navigation by ensuring steady, reliable power throughout the flight.

Bringing It All Together

In a modern cockpit, many of these instruments appear together on digital screens. The primary flight display and multi-function display show key information like altitude, airspeed, and course—all in one place. The data from sensors like the pitot-static system and gyroscopic instruments feed into these displays automatically.

During instrument flight, a pilot constantly checks these tools to stay safe and on course. If one instrument gives odd readings, others help verify the truth. For example:

• The VSI and altimeter work together to confirm climbs or descents.

• The attitude indicator and heading indicator keep turns smooth and steady.

• The VOR, ILS, and GPS give clear navigation guidance for any route or landing.

When used together, these instruments give the pilot a complete picture of the airplane’s situation. They show what’s happening, what’s changing, and what action is needed—all in real time.

Conclusion

Every safe flight depends on accurate information. Every tool in the cockpit tells a story about safety and precision.

The navigation instruments in aircraft help pilots track their path, speed, and altitude with confidence. From the simple magnetic compass to advanced digital systems, each instrument plays a part in helping pilots stay in control. These fifteen tools have evolved over time, but their goal is the same—to help pilots fly confidently through every sky!

As technology grows, navigation keeps getting smarter and safer. The next time you see an airplane overhead, you can imagine all the tools at work inside that cockpit—each one helping the pilot stay on course.

For more aviation tips and insights, visit Flying411 and keep learning about the world of flight!

FAQs

1. What are the six basic flight instruments?

They are the airspeed indicator, altimeter, attitude indicator, heading indicator, turn coordinator, and vertical speed indicator.

2. What does the altimeter show?

It measures how high the aircraft is above sea level using barometric pressure.

3. How does a pilot know their direction?

Pilots use the heading indicator and magnetic compass to stay on the correct course.

4. What is the difference between GPS and INS?

GPS uses satellites to find location, while INS calculates position based on aircraft movement.

5. Why is the instrument landing system important?

It helps pilots land safely when visibility is poor by guiding them to the runway electronically.
